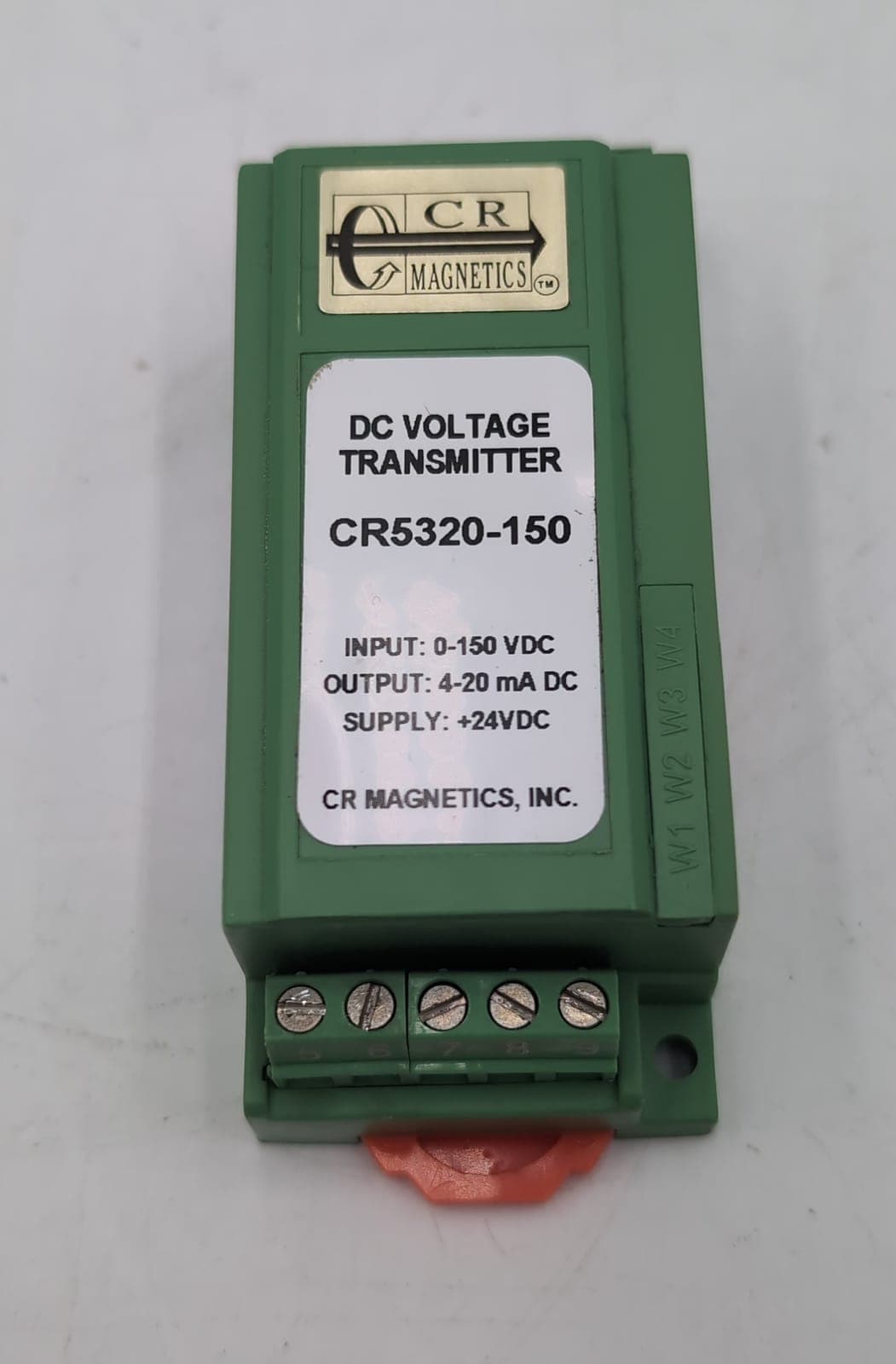

CR Magnetics CR5320-150 DC Voltage Transducer 0-150VDC Input 4-20mA Output USED
$90.00
Specifications
- Part Number
- CR5320-150
- Manufacturer
- CR MAGNETICS
- Condition
- Used
Out of Stock
Description
High-performance CR Magnetics CR5320-150 DC voltage transducer. It provides an isolated 4-20 mA DC output that is ratiometrically proportional to the 0-150 VDC input. It is an ideal solution for monitoring battery chargers, power supplies, or mobile DC applications.
Input Range: 0-150 VDC.
Output Signal: 4-20 mADC.
Supply Voltage: 24 VDC ±10%.
Accuracy: 1.0% (Basic Accuracy).
Mounting: 35mm DIN rail or panel mount.
Isolation Voltage: 2500 VDC.
Response Time: 250 ms maximum.
SKU: CR5320-150-U
Weight: 2 lbs
