Eaton Cutler-Hammer DK3400W 400A 3P 240V Circuit Breaker w/ KT3400T Trip Unit
$800.00
Specifications
- Part Number
- DK3400W
- Amperage
- 400 Amp
- Manufacturer
- Eaton
- Condition
- Used
- Frame
- K-Frame
- Interrupt Rating
- 65 kAIC @ 240 VAC
- Maximum Amperage
- 400A
- Phases
- 3
- Poles
- 3
- Voltage
- 240 Volt
In Stock2 Used units available
1
Description

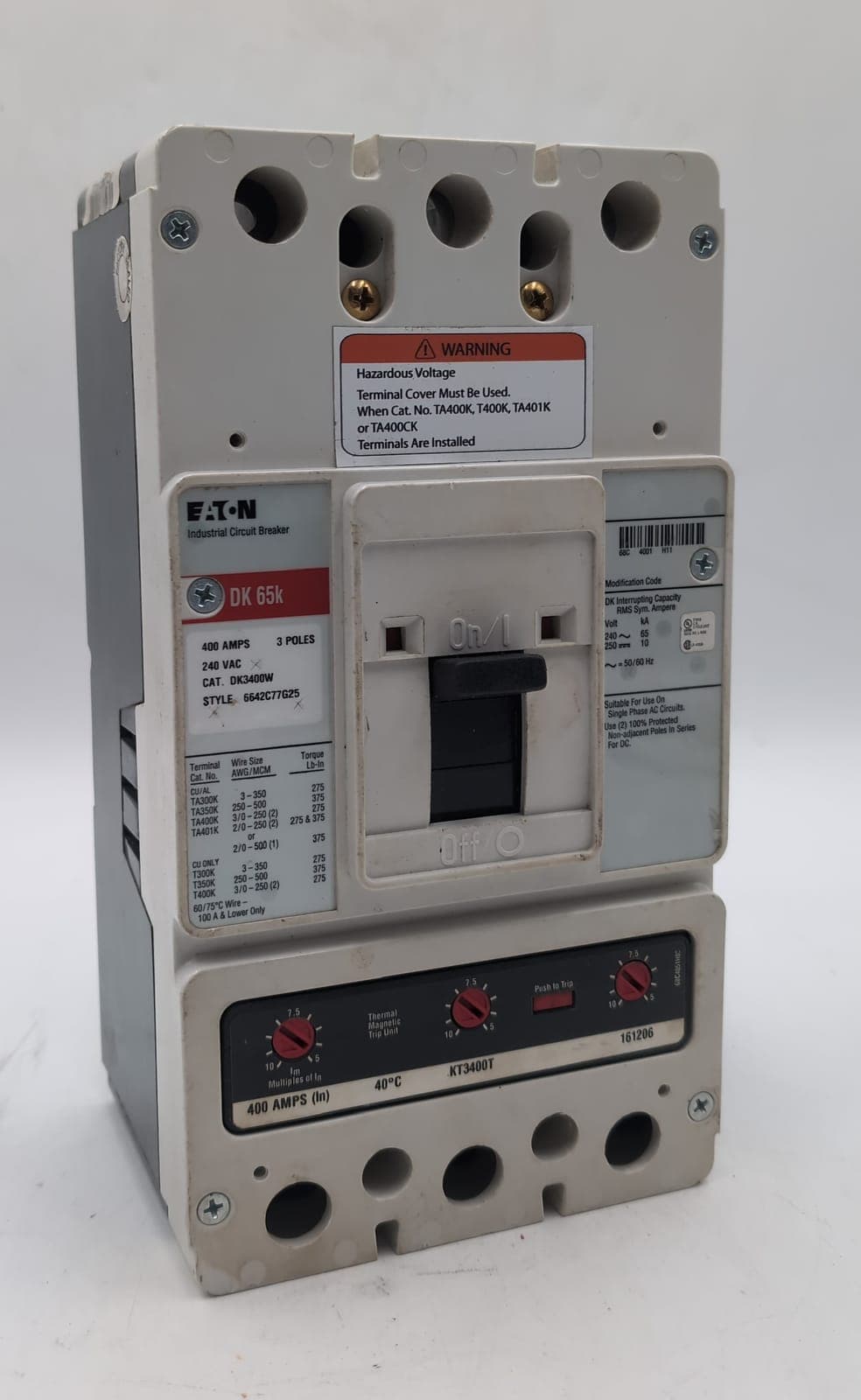

Eaton Series C K-Frame molded case circuit breaker (MCCB), model DK3400W, equipped with a KT3400T thermal-magnetic trip unit. Designed for commercial and industrial applications, this unit provides robust overcurrent and short-circuit protection for 240V systems.
Amperage: 400 Amps
Voltage Rating: 240 VAC / 250 VDC
Number of Poles: 3-Pole
Interrupt Rating: 65 kAIC @ 240 VAC
Frame Type: K-Frame
Trip Type: Thermal-Magnetic (Fixed Thermal, Adjustable Magnetic)
Trip Settings: Magnetic adjustment ranges from 5-10 times the continuous ampere rating.Thank you, Brilliant Electrical Supply.
Location: D04S24
Dimensions: 18" L x 18" W x 18" H
Weight: 10 lb
SKU: DK3400-KT3400T-U
Weight: 10 lbs
