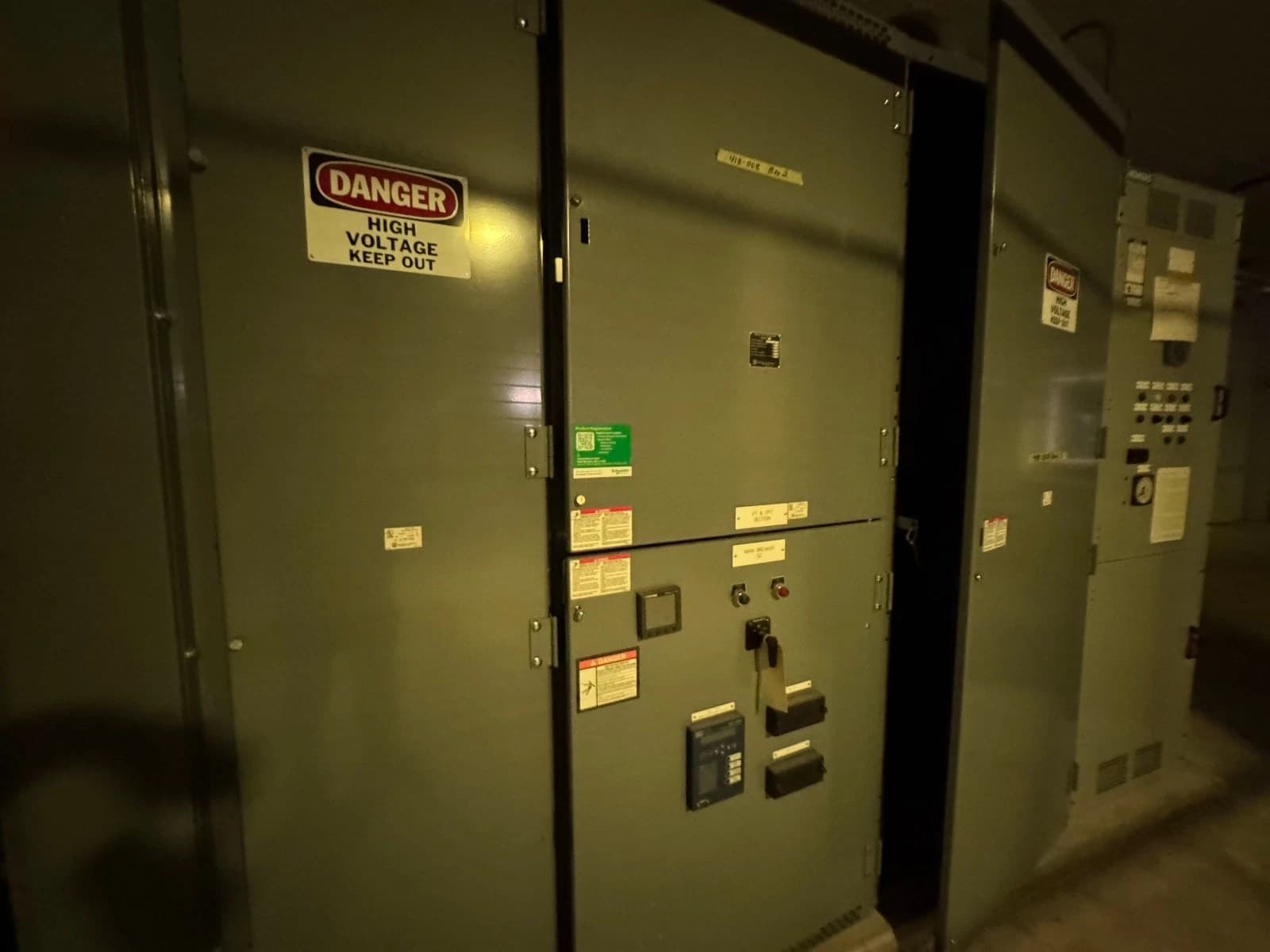

Square D VR V5D3153Y000 1200A 4.76 kV Medium Voltage Switchgear 1200 Amp

Manufacturer: Square D Company Model / Type: VR Catalog No.: V5D3153Y000 Factory Order No.: 17-35817418-008 Year Installed: 2015 (physically installed but never wired or energized) Location: Durham, NC Condition: Excellent - effectively unused Will come with a test report ------------------------------- Configuration (Per Lineup) Each lineup includes: * Incoming Section * Breaker Cell with VR Breaker * PT/CPT Section * Transformer Connection Section ------------------------------- Breaker Electrical Ratings * Rated Maximum Voltage: 4.76 kV * Voltage Range Factor (K): 1.00 * Impulse Withstand (BIL): 60 kV * Frequency: 50/60 Hz * Continuous Current: 1200 A * Short-Circuit Current: 40 kA SYM * MVA Class Reference: 250 MVA * Interrupting Time: 3 cycles ------------------------------- Control Power (Coils) * Closing Coil Voltage Range: 104-125 VAC * Closing Coil Current: 6.8 A * Tripping Coil Voltage Range: 70-140 VDC * Tripping Coil Current: 0.9 A ------------------------------- Additional Data * Breaker Weight: 380 lbs * Instruction Book No.: 6055-S1 ------------------------------- Notes Five total lineups available. Equipment was installed in 2015 but never wired up or placed in service. Clean, dry, controlled environment.
